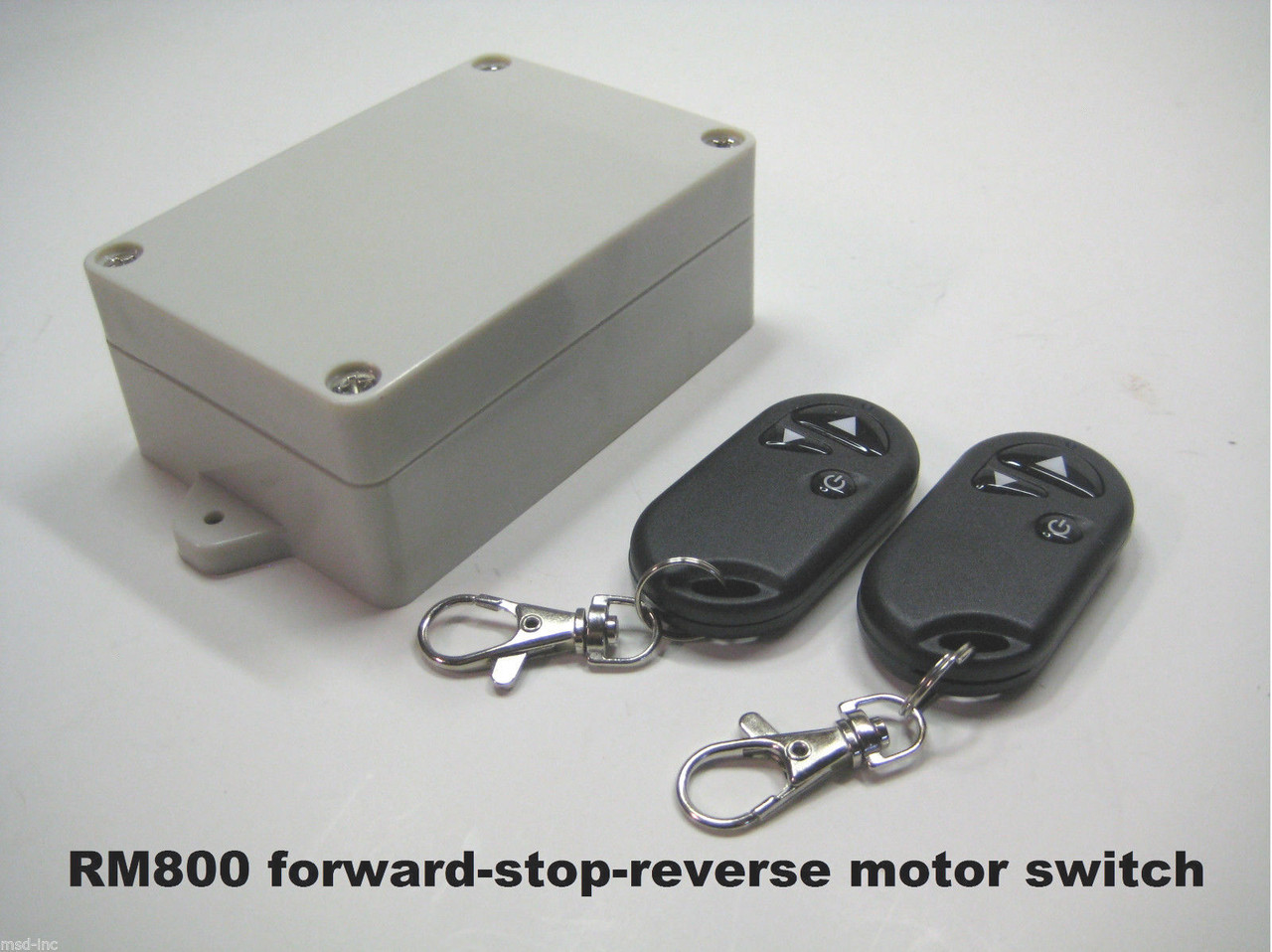

12V 30A 2 pole motor control switch with water resistant remote control

Product Description

model RM800

RM800 switch is use for controlling two-way motor, and control it wirelessly, compact and affordable, can be used in many electronic projects.

It can be configured to manage a two-way motor using two distinct settings: either forward/stop/reverse or momentary forward/reverse.

Kit comes with a polarity-controlling 30A relays switch and two remote control transmitters complete with batteries and an instruction sheet.

Specifications:

Intended for 12v applications exclusively; requires a 12V DC power source for operation.
If used with an AC outlet, ensure the utilization of an AC to DC converter or adapter. This is a DC swtich and is not suitable for direct AC use.
Stanby current draw is 5mA
Maimum contact load on relay is 30A@12v DC
Dimensions on switch receiver housing: 4" x 2 5/8" x 1 1/2"
The switch incorporates limit switch connecting jumpers, suitable for motors with built-in limit switch functionality.
Screw-type input/output connectors provided for easy motor and power supply connections. *wires are not included.
Transmitting range approximately 80ft in open field; signal strength dependent on switch receiver and transmitter power, as well as RF interference in the vicinity.
Remote control type: 3 button transmitter with water-resistant shielding.
By simply changing the jumper on the board, the switch receiver can change between latching forward/reverse or momentary forward/reverse.

30 days return/exchange
