MSD

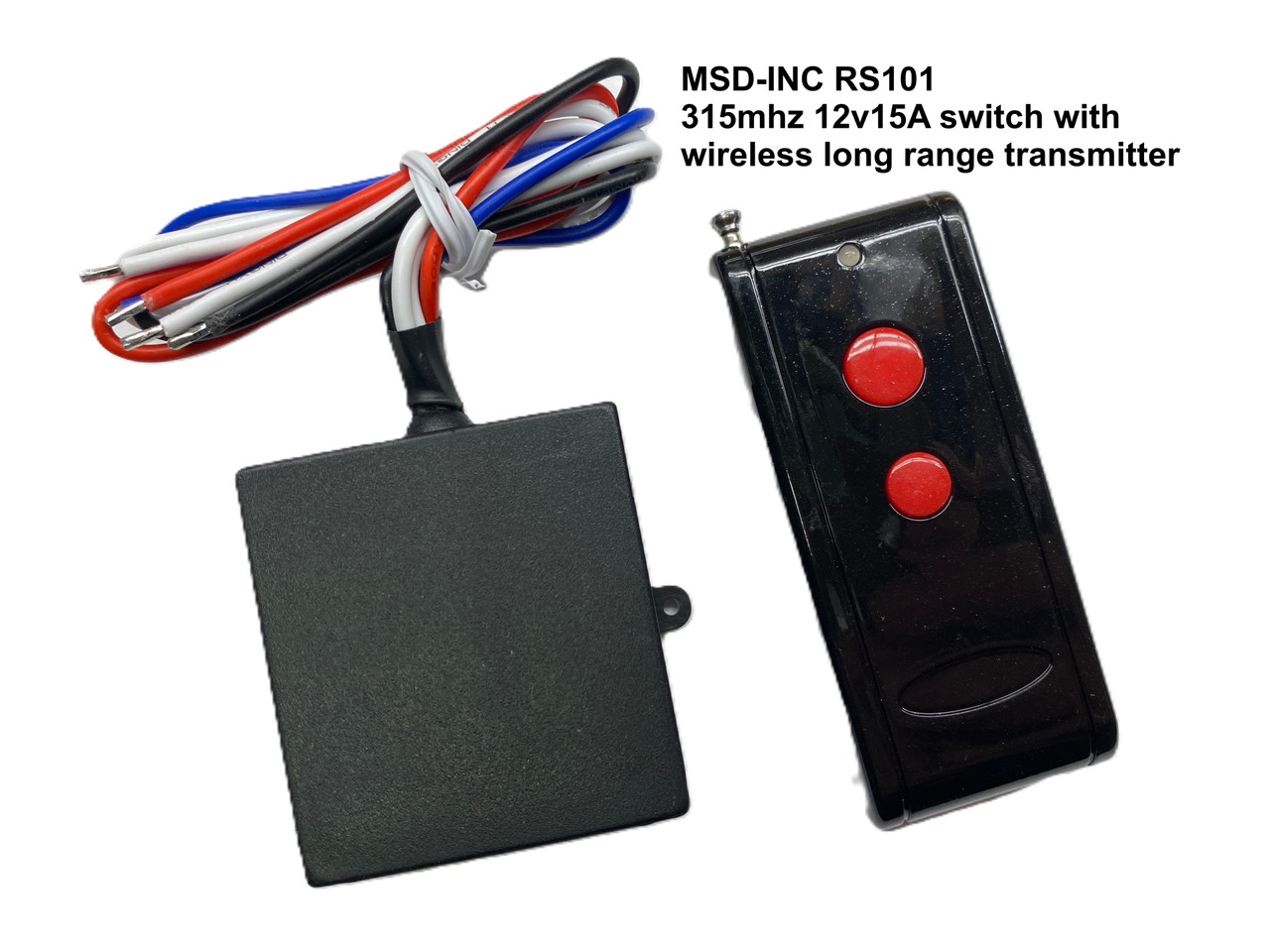

Universal 12V 15A In-Out DC On-Off with Long Range Remote Control Relay Switch

$25.00 $17.85
(You save $7.15)

Product Description

Compact size and mounting holes make it easier for installation. -Kit includes one receiver box and one long range remote control. Specs: Input voltage: DC 12V Output voltage: DC 12V Operating Bandwidth: 315MHZReceiver standby Current: 7mA, Relay max. current output 15A Operating voltage: 12V DC Dimension: 1.75" x 1.75" x 1" Remote range up to 500 ft in open field with no obstacle and RF interference (Due to long transmitting range, please press and hold the button until receiver responded) Remote Battery: A23, 12V Remote Dimension: L=3 1/4" W=1 3/8" D=5/8" Remote antenna is 5 1/4" in length Wire layout: Red wire: 12vdc positive power input Black wire x2: for ground or negative connection for both input power and output device Green wire: Antenna, no connection required White wire: 12Vdc positive power output when box is turn on Installation Connect power source 12vdc (+) to Red wire Connect power source Ground (-) to Black wire (there are 2 black wires, both the same.) Connect White wire to output device 12Vdc (+) Connect Black wire to output device Ground (-) Mount Blue wire (Antenna) to where you can get a best reception from remote control, make sure tip of antenna wire does not touch any live voltage. Note: An in line fuse is recommended to prevent any surge or short to this kit or your connected device. Caution! Do not connect directly to any 120/240VAC power without using a12V AC/DC converter or adapter.

Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

Quantity:
SKU:
MSD-RS101
